Welcome to FerGroup

The comprehensive framework for the study of Amoeba graphs and the $\operatorname{Fer}$ group. Scroll down to get started with just a few lines of Python code!

---

Features

• Intuitive isomorphism chains

  Perform operations like products and shifts with simplified chains for readability and efficiency.

• $\operatorname{Fer}$ group computation

  Computation of the $\operatorname{Fer}$ group for any graph. Flexible isomorphism criteria, such as node color constraints.

• Database and hypothesis testing

  Automatically queried to avoid recomputation. Offers a foundation for hypothesis testing and statistics.

• Powerful visualization tools

  Animate $\operatorname{Fer}$ actions, including automorphisms. Export in any format for presentations and publications.

• Cutting-edge algorithms and hypothesis testing

  Factor chains into generators. Verify claims on a large set of graphs. Find complex counterexamples.

• Potential applications in network design

  Networks with large $\operatorname{Fer}$ groups may have strong fault tolerance properties.

Quick Start

Please consult the User Guide for the complete project documentation.

You can find all below examples already on Google Colab.

Computing the Fer group of a path

Quick installation

!git clone https://github.com/tonamatos/FerGroup.git
%cd FerGroup
from fer_group import Fer_group

Computing your first Fer group

import networkx as nx

# Generate graph and find Fer group
G = nx.path_graph(5)
K = Fer_group(G)
print(K)

Output

Automorphism generators
                         (4) : (0 -> 0)
                  (0 4)(1 3) : (0 -> 0)

Non-trivial Fer object generators
                  (1 4)(2 3) : (0 1 -> 0 4)
                    (4)(0 1) : (1 2 -> 0 2)
                  (0 1)(2 4) : (1 2 -> 0 4)
                       (2 4) : (1 2 -> 1 4)
                    (4)(0 2) : (2 3 -> 0 3)
                  (0 2)(3 4) : (2 3 -> 0 4)
                       (3 4) : (2 3 -> 2 4)
                 (0 1 2 3 4) : (3 4 -> 0 4)

fer object manipulation

We can interact with the elements of the $\operatorname{Fer}$ group. These can be defined manually or taken from an existing group, like the one above. We showcase both posibilities.

Multiplication order

In this framework, permutations are always multiplied left to right, as opposed to most literature on Group Theory.

From an existing groupManually

# Take the first two non-automorphism fer objects in K
fer1 = K.non_aut[0]
fer2 = K.non_aut[1]

# Multiplication is left-to-right
fer3 = fer1*fer2
print(fer3)

# Manual definition
from sympy.combinatorics.permutations import Permutation
from feasible_edge_replacements import Feasible_edge_replacement as Fer

# Define the permutations
p1 = Permutation(1,4)(2,3)
p2 = Permutation(4)(0,1)

fer1 = Fer(old_edge={0,1}, new_edge={0,4}, permutation=p1)
fer2 = Fer(old_edge={1,2}, new_edge={0,2}, permutation=p2)

# Multiplication is left-to-right
fer3 = fer1*fer2
print(fer3)

Output

                (0 1 4)(2 3) : (0 1 -> 0 4)(3 4 -> 0 3)

Powerful tools at your disposal

FerGroup makes complex information on the group easily available.

print("Group order:",                 K.group.order())
print("Orbits:",                     *K.group.orbits())
print("Is symmetric?",                K.group.is_symmetric)
print("Is abelian?",                  K.group.is_abelian)
print("Is primitive?",                K.group.is_primitive())
print("Number of automorphisms:", len(K.automorphism))
print("Stabilizer:",                 *K.group.pointwise_stabilizer([0,1,4]))

Output

Group order:             120
Orbits:                  {0, 1, 2, 3, 4}
Is symmetric?            True
Is abelian?              False
Is primitive?            True
Number of automorphisms: 2
Stabilizer:              (4)(2 3)

Plotting

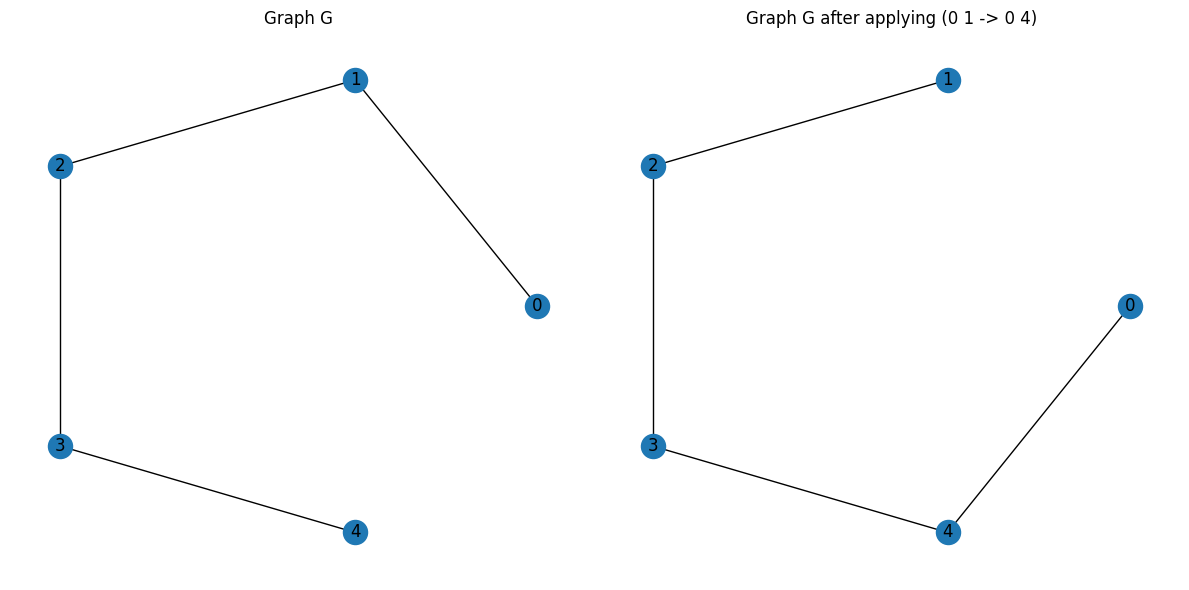

Plotting an edge-replacement

import matplotlib.pyplot as plt
from Fer_G import edge_replace

# Apply an edge-replacement
H = edge_replace(G, (0, 1), (0, 4))

# Create layout and plot
pos = nx.circular_layout(G)
fig, axes = plt.subplots(1, 2, figsize=(12, 6))

# Draw graphs
nx.draw(G, pos=pos, with_labels=True, ax=axes[0])
axes[0].set_title("Graph G")
nx.draw(H, pos=pos, with_labels=True, ax=axes[1])
axes[1].set_title("Graph G after applying (0 1 -> 0 4)")

# Show plot
plt.tight_layout()
plt.show()
